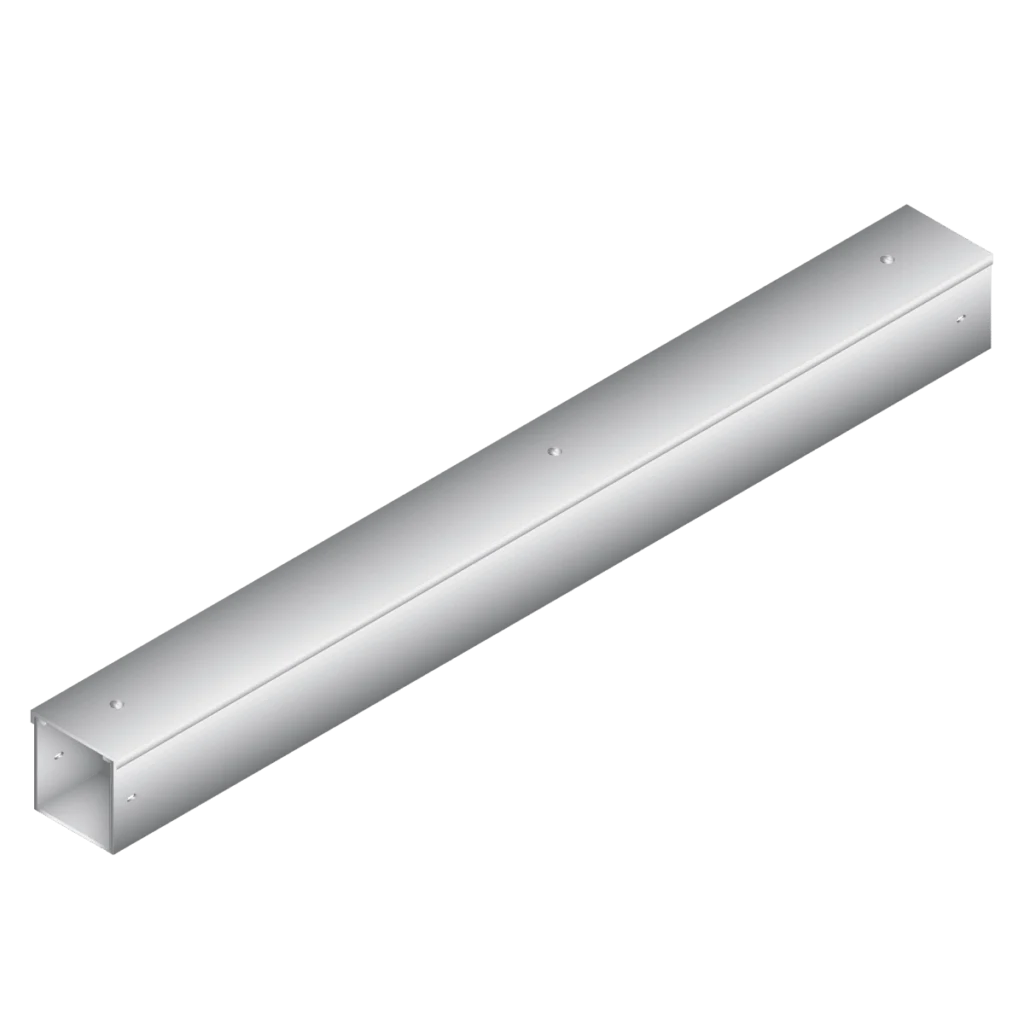

Delta Cable Trunkings

Product Specification

Material and Finish

• Pregalvanized steel or hot dip galvanized steel before fabrication (HDGBF) as per BS EN 10142
• Epoxy polyester Powder coating to any RAL Colour
• Aluminium Cable Tray
• Stainless Steel cable trunking are available in Screw type lid with M4 Panhead screws.

Types Available

Single or multi compartment Trunking.  Multi compartment Trunkings available in 2,3 or 4 compartments.

We also offer

• Weather proof trunking
• Lighting trunking
• Raised floor trunking
• Under floor trunking
• Flush floor trunking
• Skirting trunking
• Dado trunking
• Bench trunking

Fittings

90 Degree bends

• Cover on Top
• Cover on Outside
• Cover on Inside

45 Degree bends

• Cover on Top
• Cover on Outside
• Cover on Inside

Tees

• Cover on Top
• Cover on Outside
• Cover on Inside

Weather proof and Lighting Trunking

Weather proof Trunking and fittings are available where dust and water should be avoided from getting into the system.  This trunkings are fitted with gaskets and made with outward flange design enables a tight sealing.

Raised Floor / Cavity Floor Trunking

Raised floor trunking gives a high degree of flexibility and uses where frequent design changes and maintenance comes.

Service Outlet Box
Suitable for 3 compartment & 4 compartment trunking.  Have 7mm recess on the lid for carpet.  Accommodate 87mm width 3 plates and 65mm width 4 plates.  Provided with 20 and 25 mm knockouts for flexible conduits.

Under Screed/ Buried Screed Trunking
Under Screed Trunking is used to supply power, data & telecommunication cables in a floor system where the cable layout is pre determined.  Supplied with cover, coupler and fastenings.

Flush Floor Trunking
Flush floor trunking is used where top of the trunking will be in flush with screed height and the position of trunking and accessories are pre-determined.  Supplied with cover, plate coupler and fastenings.

Skirting / Dado / Bench Trunking

Skirting Trunking

Skirting trunking is used to supply power, telephone and data services around the perimeter of office accommodation.  Supplied in standard 2 meter lengths in two and three compartment options, each length is supplied completed with connector, cover and cover fixing strap.

The internal separators are provided with 20 mm knockouts at 200 mm centres to allow access to the middle compartment.  This allows all socket outlets from all compartments to be mounted at the same level.

The cover fixing straps allow for easy positioning of socket outlet plates, eliminating the need for drilling when on site cutting is required.

Dado Trunking

Skirting trunking is used to supply power, telephone and data services around the perimeter of office accommodation.

Supplied in standard 2 meter lengths in two and three compartment options, each length is supplied completed with connector, cover and cover fixing strap.

The internal separators are provided with 20 mm knockouts at 200 mm centres to allow access to the middle compartment.  This allows all socket outlets from all compartments to be mounted at the same level.

The cover fixing straps allow for easy positioning of socket outlet plates, eliminating the need for drilling when on site cutting is required.

Bench Trunking

Bench trunking is used to supply power services to remote bench units mainly in school, university, laboratory and workshop environments.

Supplied in standard 2 meter lengths, each length is supplied completed with connector, cover and cover fixing strap.

The cover fixing straps allow for easy positioning of socket outlet plates, eliminating the need for drilling when on site cutting is required.
