cable_ladder_01

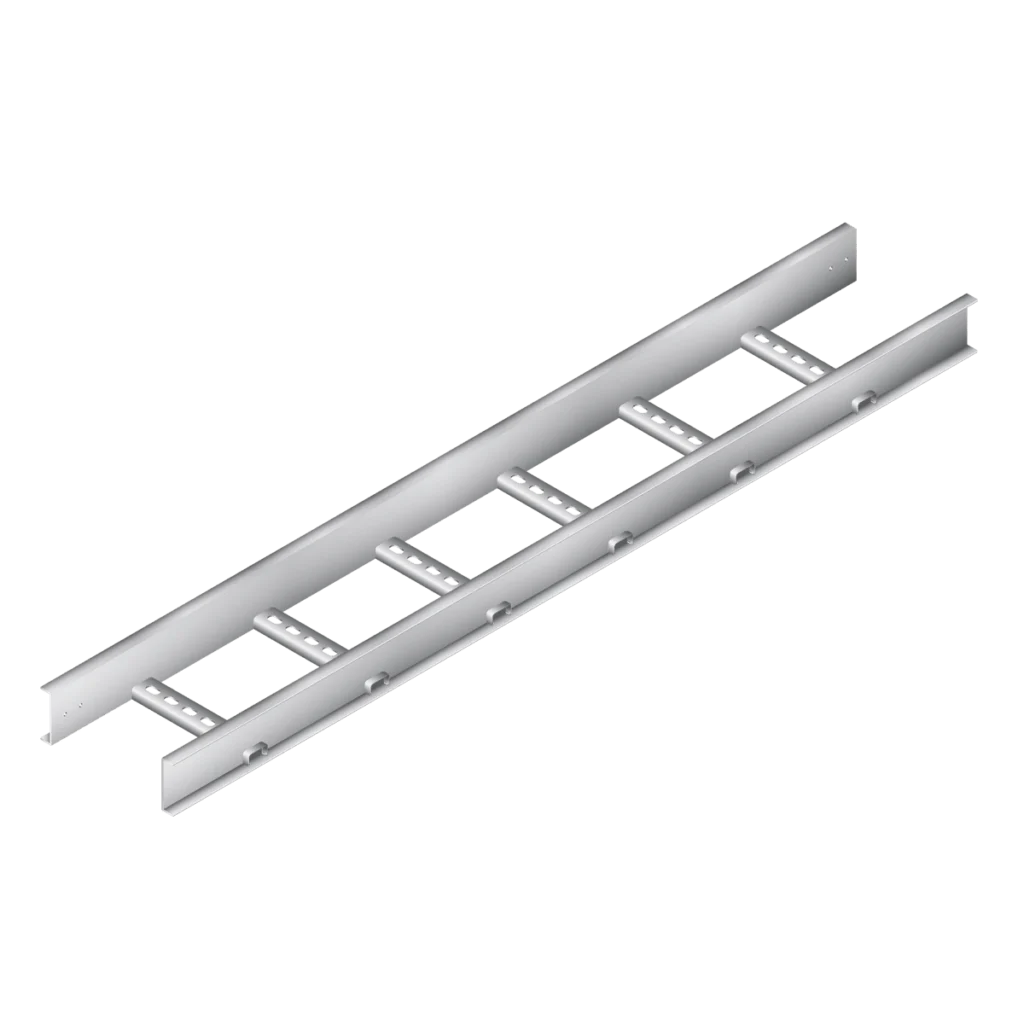

Delta Cable Ladder


Metallic Delta Cable ladders are manufactured for the smooth and easy pulling of cable from one point to another. We have designed the best cable ladders, by taking care of cable loads and practical site problems. The rungs are heavy duty strut channels which provides a heavy support to the cables even in wider ladders. Delta Cable ladders is having maximum cable loading depth by fixing rungs at the lowest point of side rails. Spacings of rungs are done in such a way that it enables the dropping of any large diameter cables.

Description

Product Specification

  • Pre-Galvanized steel or hot dip galvanized steel before fabrication (HDGBF) as per BS EN 10142
  • Hot dip Galvanized after fabrication (HDGAF) as per BS EN 1461
  • Epoxy polyester Powder coating to any RAL Colour
  • Aluminium Cable Tray
  • Stainless Steel cable ladder to AISI 304 and AISI 316L

Types available

  • C Type
  • R Type
  • P Type

Side Heights Available
50, 75, 100, 125, 150 mm

Loading Depth
To get a loading depth of a particular side height substract 25 mm

Length
3 meters as standard. Other lengths are also available
Rungs Spacing
300 mm Standard, with slot size of 10 x 30 mm or 12 x 30 mm

Delta Cable Fittings

  • 90 Degree Horizontal Bend
  • 45 Degree Horizontal Bend
  • Horizontal Cross
  • 90 Degree Riser Outside
  • 90 Degree Riser Inside
  • Horizontal Tee
  • Straight Reducer
  • Left Hand Reducer
  • Right Hand Reducer
  • 90 Degree Vertical Support Elbow
  • Dropout
  • Vertical Tee
  • 45 Degree Branch

Cable Ladder Accessories and Cover Fixing Arrangements

  • Standard Coupler
  • Adjustable Horizontal Coupler
  • Divider
  • Angle Connector
  • Raised Hold Down Clip
  • Hold Down Clamp
  • Adjustable Vertical Connector
